A drone may need reliable positioning, command and control, video transmission, cloud connectivity, and low-power status reporting at the same time. These functions do not use one interchangeable radio. The system architect must first separate the GNSS positioning path from the data links, then define measurable requirements for each path.

Drone GNSS and wireless connectivity integration (AI application illustration; not an actual product image or performance claim).

I. Why Drones Need GNSS and Wireless Connectivity

GNSS supports position, speed, navigation, return-to-home, mapping, and timing. A magnetometer may add heading information for the flight controller. GNSS, however, does not transmit general telemetry, live video, cloud data, or remote-control commands. Those functions require a separate Wi-Fi, cellular, LPWAN, or dedicated radio link.

A hybrid UAV can therefore use GNSS for positioning, a high-data-rate link for video, and a low-data-rate link for status or backup reporting. The appropriate architecture depends on the mission, coverage, energy budget, airframe space, and target markets.

II. GPS, GNSS, Multi-Constellation, Dual-Band, and RTK

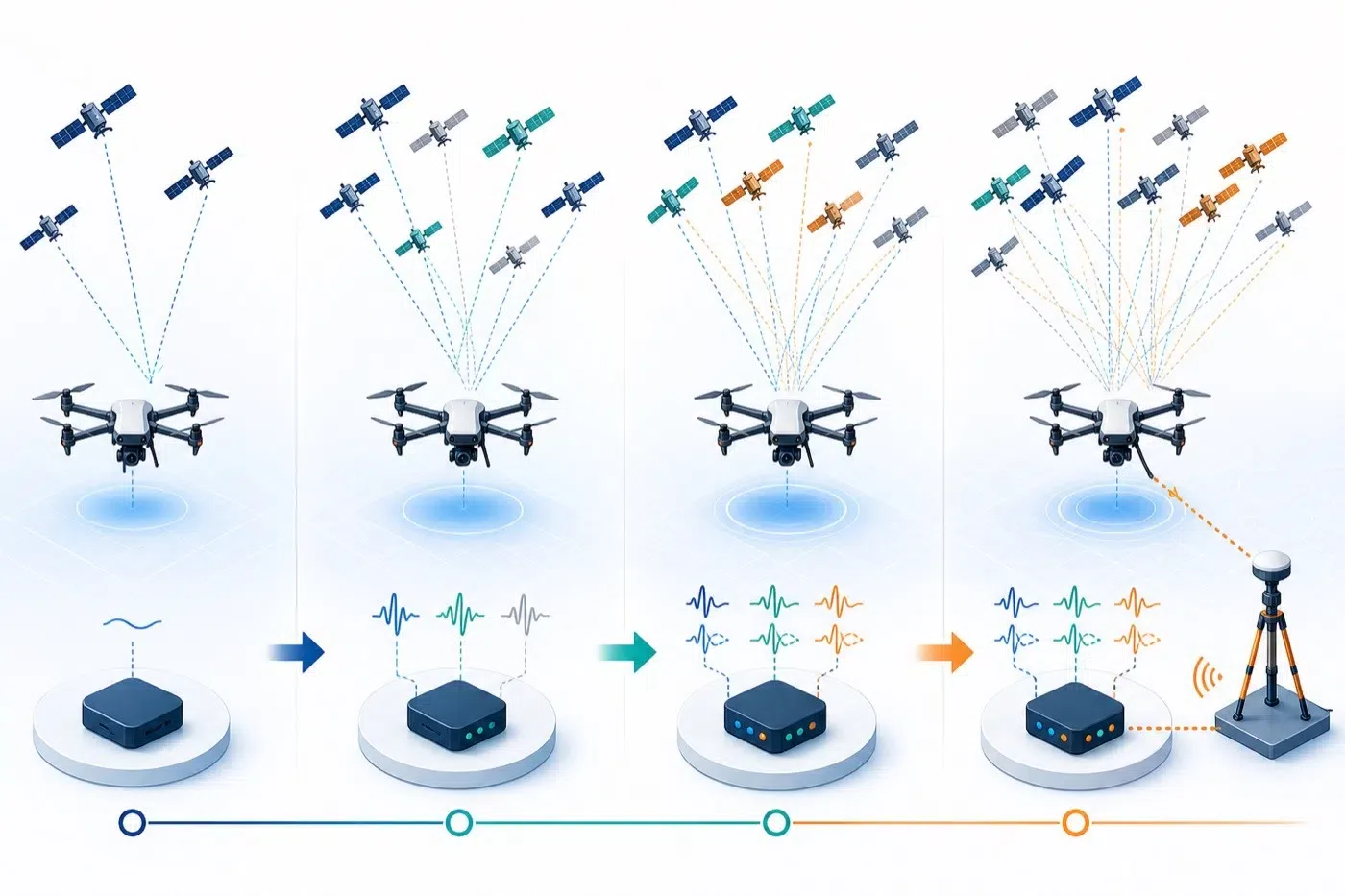

Select GNSS complexity from mission requirements: basic navigation, multi-constellation, dual-band, or RTK (AI technical illustration).

GPS and GNSS

GPS is the United States positioning system. GNSS is the broader term that can include GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC. More visible satellites may improve availability, but the final result still depends on the receiver, antenna, frequency bands, installation, interference, firmware, and algorithms.

Single-band and dual-band

Single-band GNSS is often considered for general navigation and power-sensitive devices. Dual-band reception can help address ionospheric error and multipath effects, but the receiver, antenna, flight controller, firmware, and data format must all support the selected bands.

RTK

RTK uses correction data from a base station or network service. A complete RTK solution normally requires a compatible receiver, correction link, base station or network, suitable antennas, and verified integration. Do not treat the word “RTK” alone as a guaranteed accuracy claim.

III. Data Rate, Range, and Power: LAN, Cellular, and LPWAN

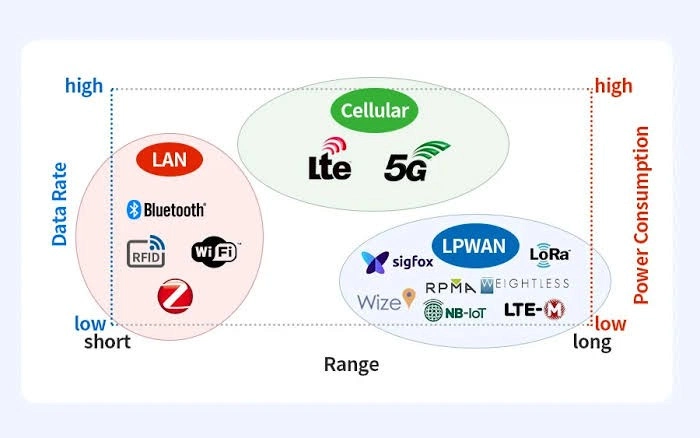

Conceptual comparison of data rate, range, and power for LAN, Cellular, and LPWAN. Actual values depend on the standard, module, antenna, network, environment, and deployment.

The supplied chart uses three decision axes: data rate rises vertically on the left, power consumption rises vertically on the right, and communication range increases horizontally. It is a planning map, not a fixed specification table.

Bluetooth, RFID, Wi-Fi, and Zigbee commonly serve local access or peripheral links. LTE and 5G can support cloud connectivity and higher data volumes where network coverage and power allow. LPWAN technologies usually target low-rate status, tracking, and alarms rather than real-time video. Target countries, operators, bands, service availability, latency, and subscription costs must be confirmed before design freeze.

IV. Key GNSS Module Specifications

• Constellations and bands: confirm the mission region and the exact receiver/antenna frequency support.
• Electronic compass: verify the sensor, orientation, calibration, and separation from motors, ESCs, high-current wires, magnets, and ferromagnetic parts.
• Interfaces and protocols: check UART, I2C, RS232, TTL, USB, pinout, logic level, baud rate, UBX/NMEA, and update rate.
• Size, weight, and power: include connector, cable, mounting structure, clearance, peak current, and heat.
• Antenna and installation: review polarization, gain, VSWR, ground plane, enclosure materials, sky view, and complete-device testing.

V. Evercom GP027, GP030A, GP034, and GP036

This table is for preliminary selection and does not replace an official specification, engineering confirmation, or sample testing.

VI. Antenna Placement and Coexistence

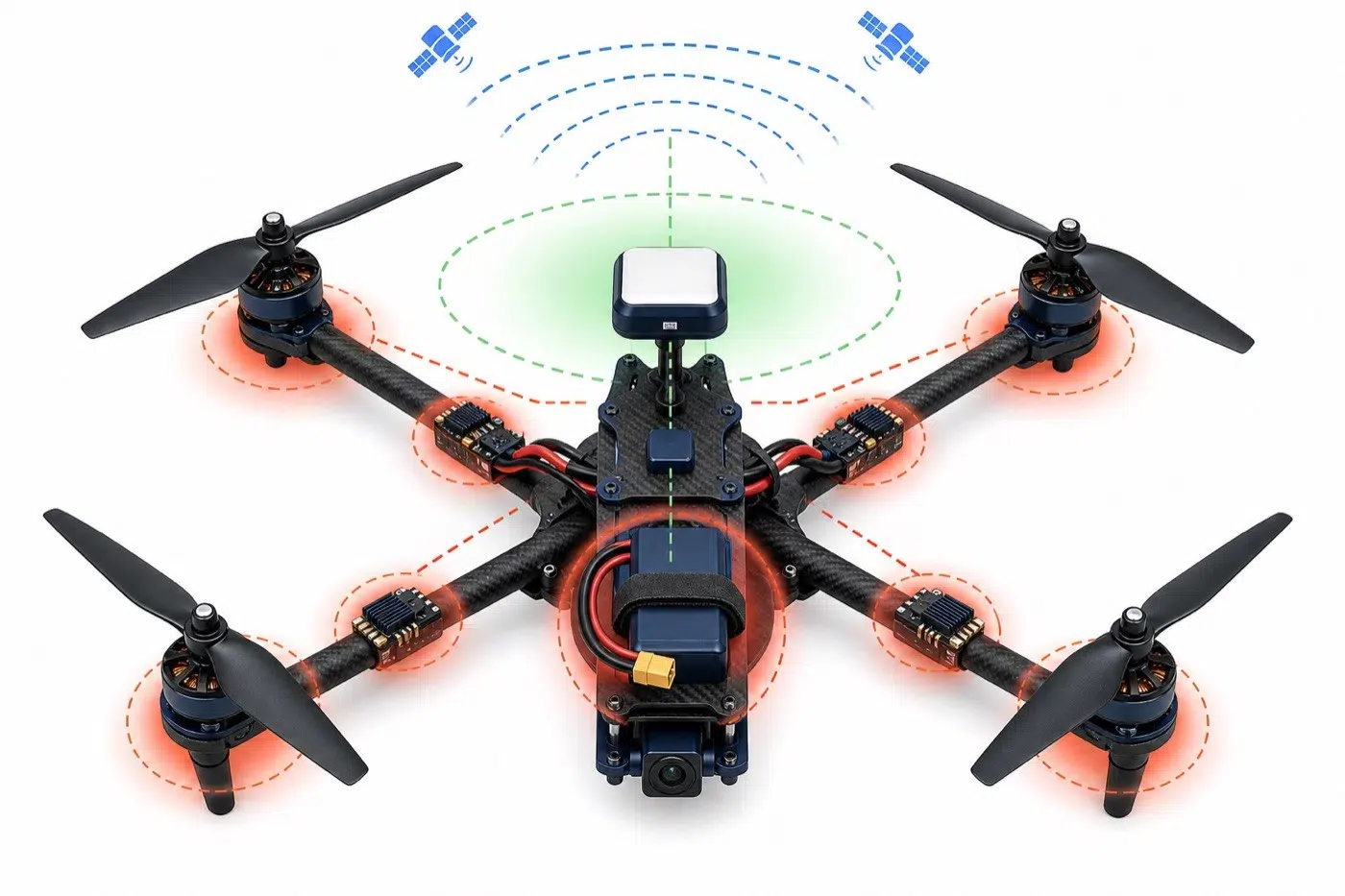

Keep the GNSS antenna exposed to the sky and the electronic compass away from magnetic and high-current interference (AI technical illustration).

• Keep GNSS above or away from carbon fiber, metal, batteries, and large electronics where possible.
• Maintain sufficient separation between transmit antennas and sensitive GNSS reception paths; evaluate harmonics, out-of-band emissions, and receiver blocking.
• Confirm antenna count and spacing for GNSS, Wi-Fi, Cellular MIMO, and LPWAN.
• Measure peak current and thermal behavior during continuous cellular or video transmission.
• Repeat static and flight tests with motors running, data links active, and the final enclosure installed.

VII. RFQ and Integration Checklist

1. UAV application: imaging, surveying, agriculture, inspection, logistics, robotics, or another mission.
2. Required GNSS constellations, bands, accuracy, update rate, and RTK architecture.
3. Flight controller, processor, modem, and supported interfaces/protocols.
4. Need for Wi-Fi/Bluetooth, LTE/5G, LPWAN, or a dedicated data link.
5. Target countries, operators, frequency bands, data rate, range, latency, and power budget.
6. Available antenna count, spacing, mounting area, ground plane, and enclosure materials.
7. Supply voltage, peak current, dimensions, weight, cable, connector, and environmental requirements.
8. Sample quantity, annual forecast, production schedule, certifications, and customization needs.

VIII. Frequently Asked Questions

Conclusion: Design Positioning and Communication as One System

Successful UAV integration starts by separating GNSS positioning from data communication, then evaluating them together at the antenna, power, mechanical, regulatory, and mission levels. Define measurable requirements before selecting a technology or model, and verify the complete aircraft rather than relying on a component label alone.
